VLX 80 Casement Window

VLX 80 Casement Window in Tampa, FL | Lightwell Windows Tampa

The VLX 80 Casement Window is a side-hinged aluminum window built around two ideas: the narrowest possible frame profile and the widest possible opening. When you crank it open in a Tampa home, the entire sash swings outward, so you get full-top-to-bottom ventilation instead of the half-window airflow you’re stuck with on a slider. Lightwell Windows Tampa is an authorized installation partner for ViewLux, the manufacturer behind the VLX 80 line. That partnership matters because the window’s performance depends on how it’s installed. A great window set incorrectly will leak, bind, and underperform. We install it correctly, per AAMA standards, every time. Call (850) 360-6785 for a free project estimate.

Call (850) 360-6785

Product Overview – VLX 80 Casement Window

Casement windows are the workhorse of Florida architecture, and the VLX 80 is built for exactly this climate. The design philosophy is straightforward: strip the frame down to the structural minimum, then engineer the hardware and seals to do the heavy lifting. What you notice first is the sightline. The VLX 80 has a profile width of just 1.97 inches, which is genuinely narrow for an aluminum casement. That means more visible glass and less metal, a look that works equally well on a 1960s ranch in Seminole Heights or a new coastal-modern build on Davis Islands.

The aluminum extrusion carries a wall thickness of 0.079 inches, which gives the sash real torsional rigidity. In plain English: the window doesn’t flex when you crank it open, even on a large unit catching a Tampa Bay breeze. Buyers choose the VLX 80 series over vinyl casements for a few consistent reasons. Aluminum doesn’t warp in Florida humidity the way some vinyl frames do after years in direct sun. The frame stays square. The hardware keeps working. And when you want an unbroken wall of glass with slim vertical mullions, vinyl simply can’t achieve the same profile dimensions. This is a window for homeowners who care about both how a window opens and how it looks on the wall.

Technical Specifications

Here’s the VLX 80 Casement Window spec sheet in plain terms. These are the numbers and options that matter when you’re comparing windows for a Tampa project.

• Frame material: Extruded aluminum with thermal break
• Profile width: 1.97 inches – among the slimmest casement profiles in its class
• Wall thickness: 0.079 inches – engineered for torsional strength on large sashes
• Operation: Side-hinged casement, crank-operated sash
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated (impact-rated available)
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Fixed Screen, Retractable Screen
• Sill options: Standard Sill, Low-Profile Sill
• Performance standards: NFRC-rated thermal performance, AAMA 2400/2410 installation compliance, AAMA 812 sealant specification
• Wind load: Rated to meet Florida coastal wind requirements when configured with appropriate glass

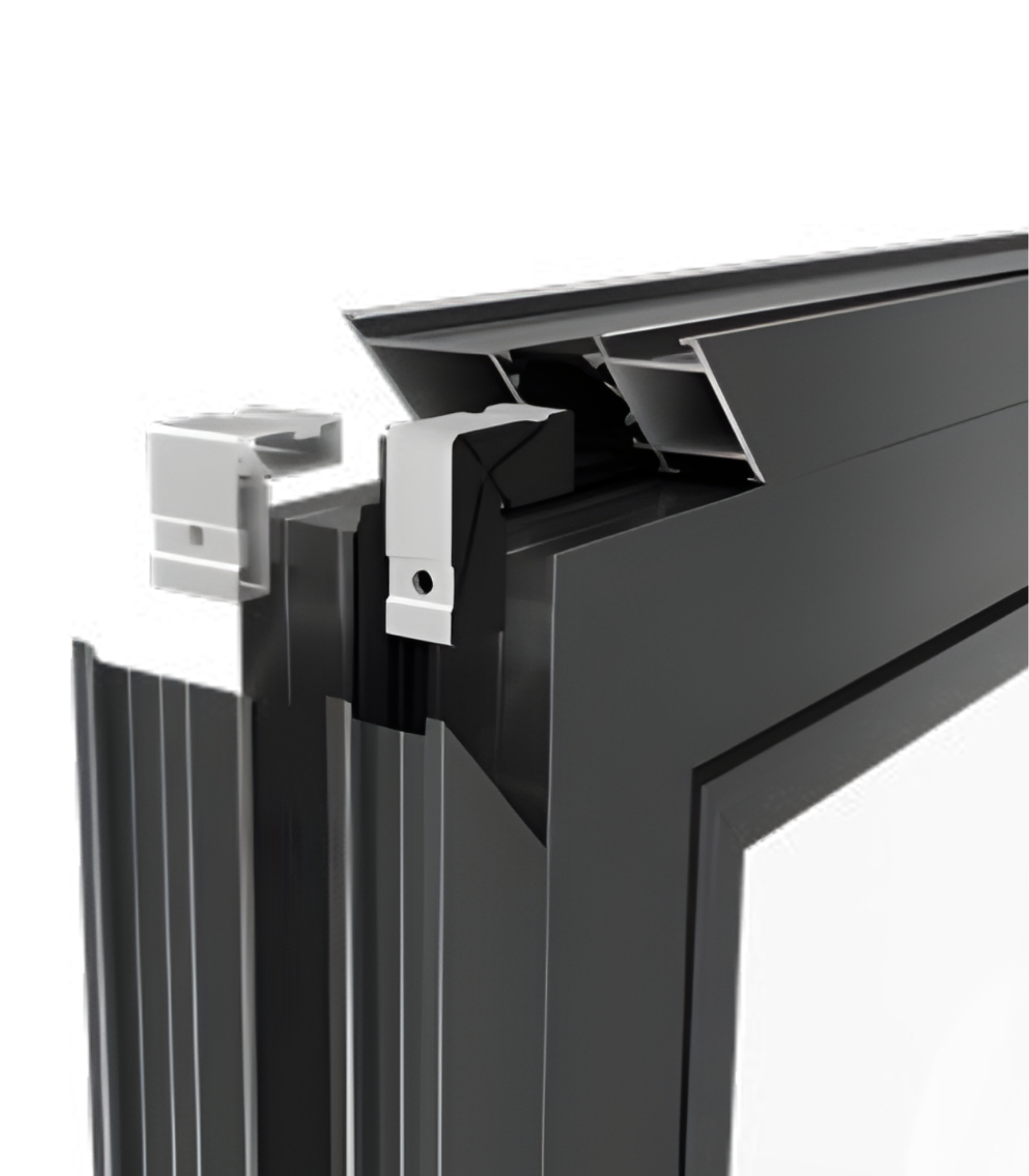

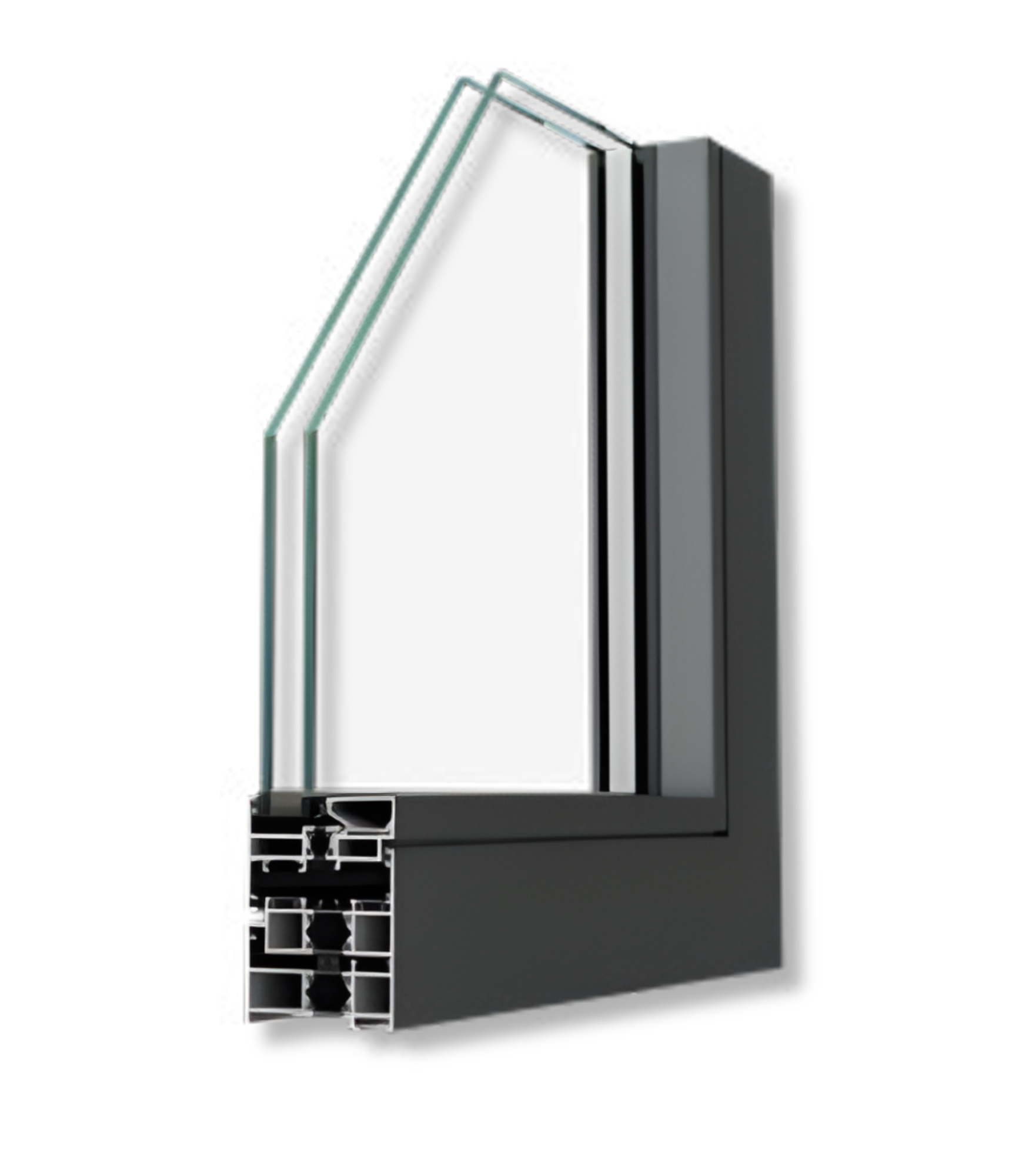

All frames are thermally broken, meaning the interior and exterior aluminum are separated by a non-conductive barrier. That’s not an upgrade on the VLX 80; it’s standard.

Performance Features

Thermal Efficiency. The VLX 80’s thermal break interrupts conductive heat transfer through the frame, which is the weak point on any metal window. Combined with Low-E glass, the window carries an NFRC energy performance rating that reflects real cooling-load reductions in Tampa’s summer months. Your air conditioner works less. That shows up on TECO bills.

Acoustic Performance. Casements seal on all four sides when closed, and the VLX 80’s compression gaskets create a real barrier against outside noise. Laminated glass pushes this further. If you live near Gandy Boulevard, the Veterans Expressway, or TPA flight paths, laminated glass cuts the traffic and overhead noise noticeably.

Airtightness & Weather Seal. A casement window closes against the frame like a door, compressing the weatherstripping evenly. That’s a structural advantage sliders don’t have. The VLX 80 uses multi-point locking that pulls the sash tight to the frame, which measurably reduces air leakage around the perimeter.

Waterproofing. The frame design includes internal weep chambers that drain any water that gets past the exterior gasket, rather than trapping it. Combined with proper installation using AAMA 812 low-expansion foam sealant on every perimeter joint, the system is designed to keep water out of the wall cavity during Tampa’s afternoon downpours.

Wind Resistance. The VLX 80 is engineered for the wind loads Florida building codes demand. With impact-rated laminated glass specified, the window meets Miami-Dade and coastal county requirements where wind-borne debris protection is mandatory. For homes in Flood Zone AE or within a mile of Tampa Bay, this is the spec to ask about.

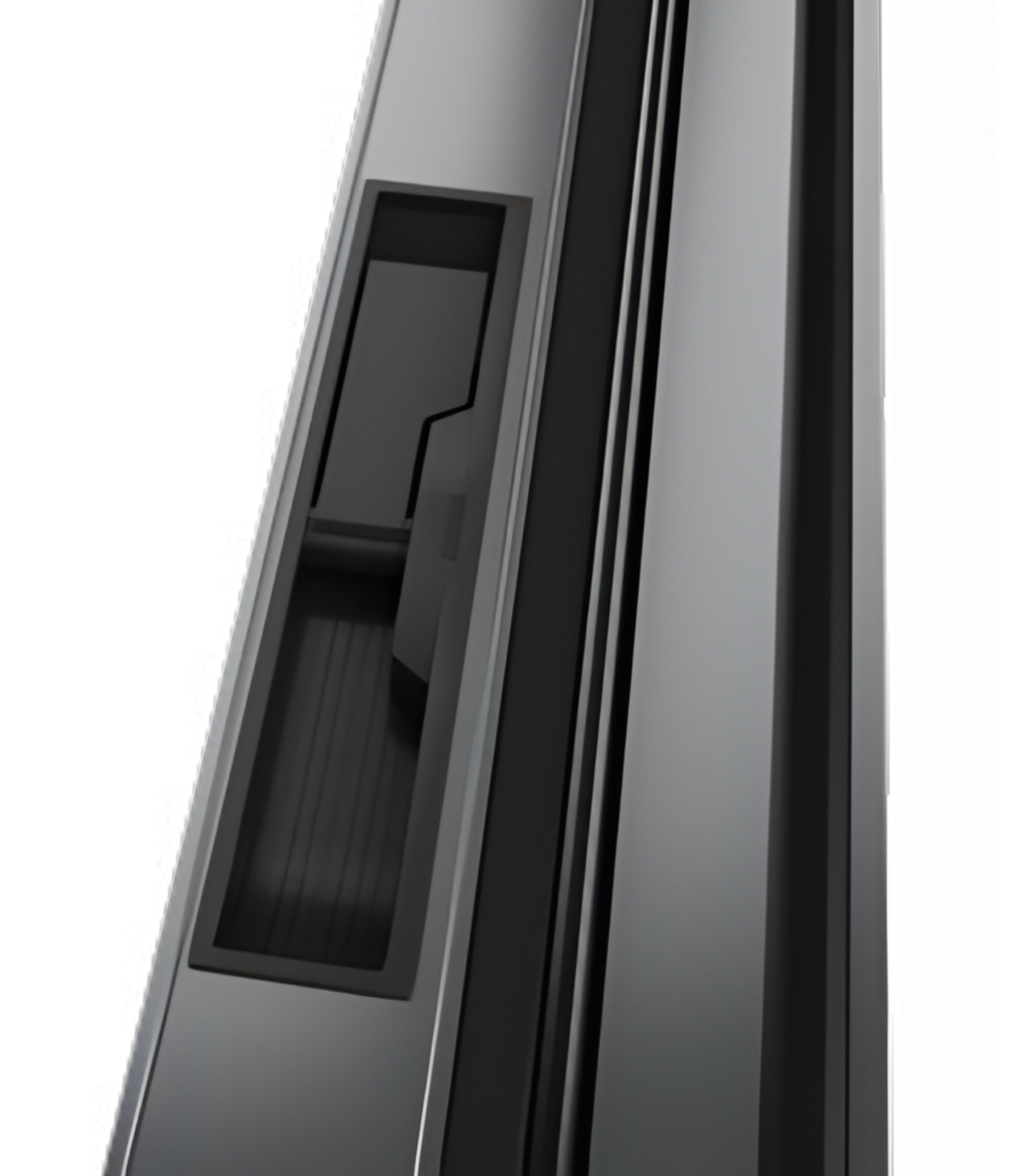

Security & Hardware. The multi-point locking hardware engages at multiple points along the frame, not just at one latch. On a casement, the open sash can’t be pulled outward without disengaging the crank mechanism first. The hardware itself is corrosion-resistant, which matters in a salt-air environment like Tampa’s coastal neighborhoods.

Color & Glass Options

The VLX 80 comes in six finishes, and the choice shapes the whole look of the wall. Pure White reads clean and classic on stucco homes in South Tampa. Premium Black is the current favorite for modern farmhouse and industrial-style renovations in Tampa Heights and Riverside Heights. Anodized Silver is raw and architectural; it suits mid-century homes and commercial storefronts. Bronze and Champagne are warmer metallics that work on Spanish-style homes in West Tampa and Ybor City. Teak Wood is a wood-grain finish that gives the look of a wood window with none of the rot risk, popular on bungalows and traditional homes throughout the city.

Glass selection depends on where the window faces. Low-E cuts solar heat gain and is the default recommendation for east and west exposures in Florida. Tempered glass is safety glass required by code in many locations, including near doors and low windows. Laminated glass is the impact-rated choice for hurricane protection and also the best acoustic performer. Frosted glass works for bathrooms and side-yard windows where privacy matters. Clear glass is the maximum-visibility option, fine on shaded north walls. You can mix and match glass types per room; most Tampa projects do.

Installation by Lightwell Windows Tampa in Tampa

We’ve replaced enough windows in Tampa to say this plainly: installation determines whether a good window stays good. A VLX 80 set out of level, out of plumb, or out of square will bind at the hardware, leak at the sill, and eventually fail at the seal. The manufacturer’s warranty assumes a correct installation. If the installer didn’t follow AAMA guidelines, that warranty is effectively void. This is the single biggest reason to use an authorized partner like Lightwell Windows Tampa rather than a general handyman who happens to own a caulk gun.

Our installation process starts before removal. We measure the existing opening, check the rough framing for rot or water damage that’s common in older Tampa homes, and confirm the new unit’s size before ordering. When the window arrives, we remove the old sash and frame without tearing up more drywall than necessary. The new VLX 80 goes in level, plumb, and square, which on older Tampa houses sometimes means shimming a rough opening that hasn’t been square since the day it was framed. We use AAMA 812 low-expansion foam sealant on every perimeter joint, per the AAMA 2400/2410 installation standard. That sealant is a critical detail: it fills voids without bowing the frame, seals air and water, and stays flexible as the building moves through Tampa’s hot-wet-cool-dry cycles.

After the unit is set and sealed, we check the crank operation, test the drainage weeps, and do a water test on the sill and corners. We pull the sash, confirm it seats evenly in the frame, and re-install it. Then we clean up: old window, packaging, job-site debris all go with us. You’re left with a working, clean, warrantied window that was installed by people who do this for a living in Tampa, not a crew learning on your house.

Frequently Asked Questions – VLX 80 Casement Window

What is the lead time for the VLX 80 Casement Window?

Most VLX 80 orders arrive in 4 to 6 weeks from ViewLux. Custom finishes, oversized units, or impact-rated laminated glass configurations can add a week or two. We confirm the exact lead time when you place the order. Call (850) 360-6785 and we’ll give you a straight answer for your specific configuration.

Does the VLX 80 qualify for energy tax credits?

Possibly. The VLX 80 with Low-E glass carries an NFRC rating that may meet the federal energy-efficiency requirements for window replacement tax credits, but qualification depends on the exact glass package and U-factor for the unit you order. We’ll tell you the performance numbers before you buy so you know what you’re getting. Call (850) 360-6785 for a detailed quote.

What warranty comes with the VLX 80 Casement Window?

ViewLux provides a manufacturer’s warranty on the aluminum frame, glass, and hardware. Lightwell Windows Tampa stands behind the installation, and because we install per AAMA standards, the manufacturer’s warranty stays valid. Ask us for the written warranty terms; we’ll give them to you before any money changes hands.

Can I customize the size?

Yes. The VLX 80 is available in a wide range of widths and heights, and we can configure multiple casements side by side for large openings. It’s common in Tampa to pair a fixed picture window with flanking VLX 80 casements on a living room wall. We’ll measure and recommend the configuration that fits your opening and your ventilation goals.

How do I maintain aluminum frames?

Wash the frames with mild soap and water a few times a year, especially after pollen season and after red tide events if you’re near the water. Keep the track and weep holes clear of debris. Lubricate the crank mechanism annually with a light silicone spray. Aluminum doesn’t need painting or sealing, and the factory finish won’t fade or peel like painted wood.

Get a Quote – VLX 80 Casement Window in Tampa

Whether you’re replacing a single window in a 1920s bungalow or spec’ing casements for an entire new build, we’ll give you a written, line-item quote with real lead times. No pressure, no games. Schedule a free on-site measurement and we’ll talk through glass, finish, and configuration options specific to your home. Call (850) 360-6785 today.

Written by the team at Lightwell Windows Tampa, authorized ViewLux installation partner serving Tampa, FL.
