VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Tampa, FL | Lightwell Windows Tampa

The VLX 100 Double Swing / French Door is a paired aluminum door system built for homeowners in Tampa who want wide, symmetrical openings without sacrificing thermal performance or security. It gives you two doors that swing open from the center, a flush threshold you won’t trip over, and multi-point locking hardware that actually feels solid when you engage it. As an authorized ViewLux installation partner, Lightwell Windows Tampa handles the measuring, ordering, and installation of this door from start to finish. We’ve installed it in homes across South Tampa, Carrollwood, Westchase, and Seminole Heights. Call (850) 360-6785 to schedule a free on-site measurement and quote.

Call (850) 360-6785

Product Overview – VLX 100 Double Swing / French Door

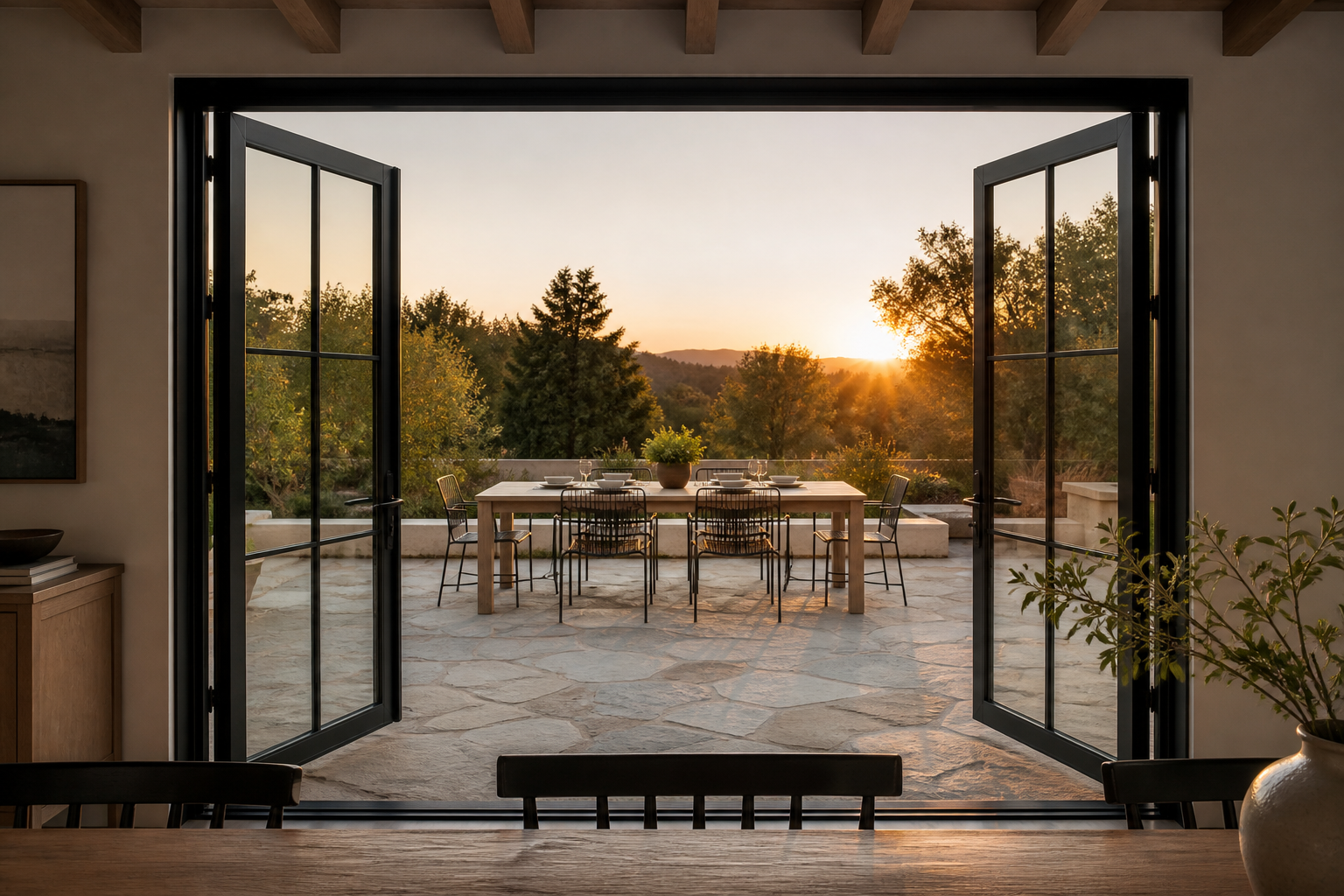

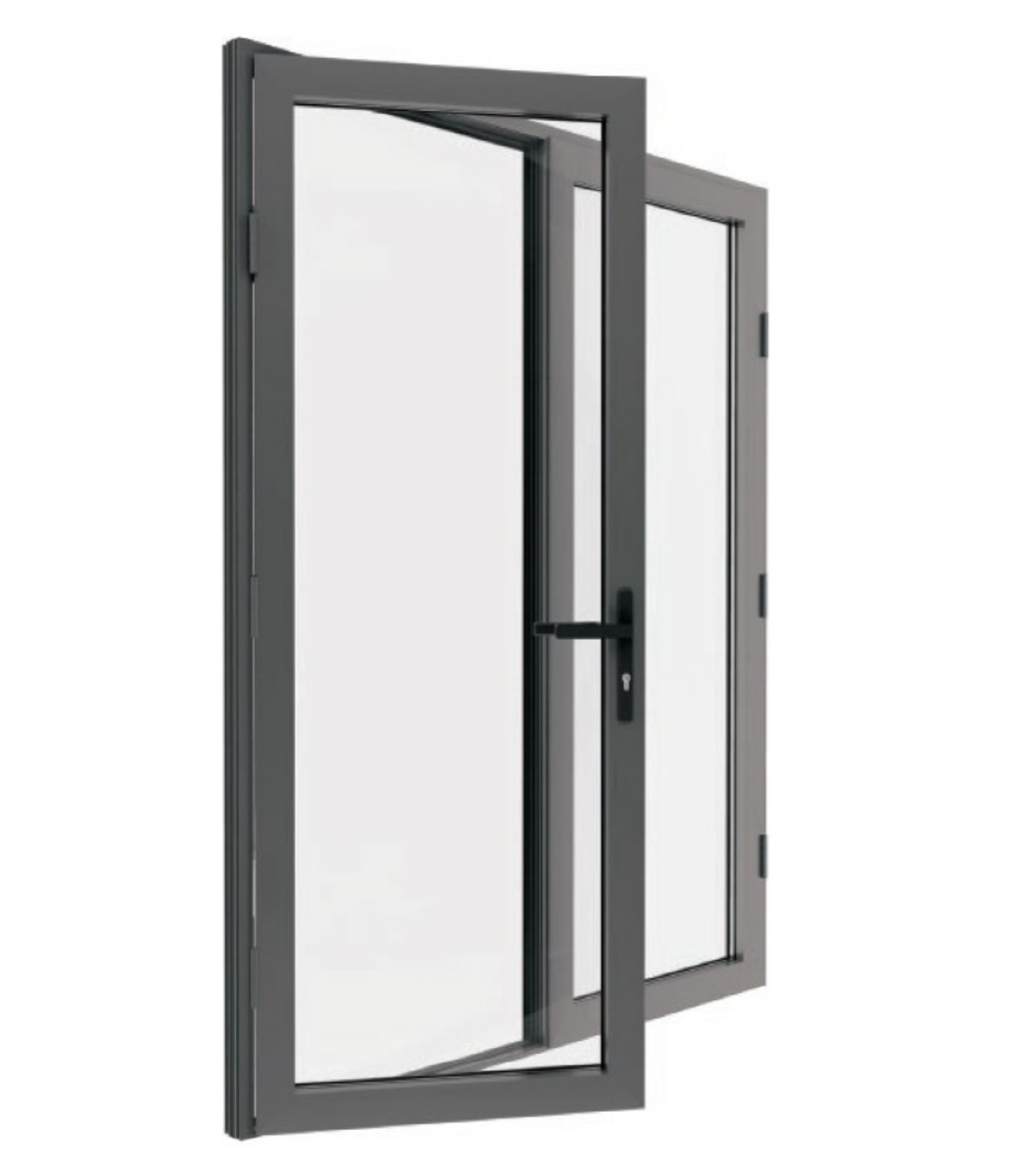

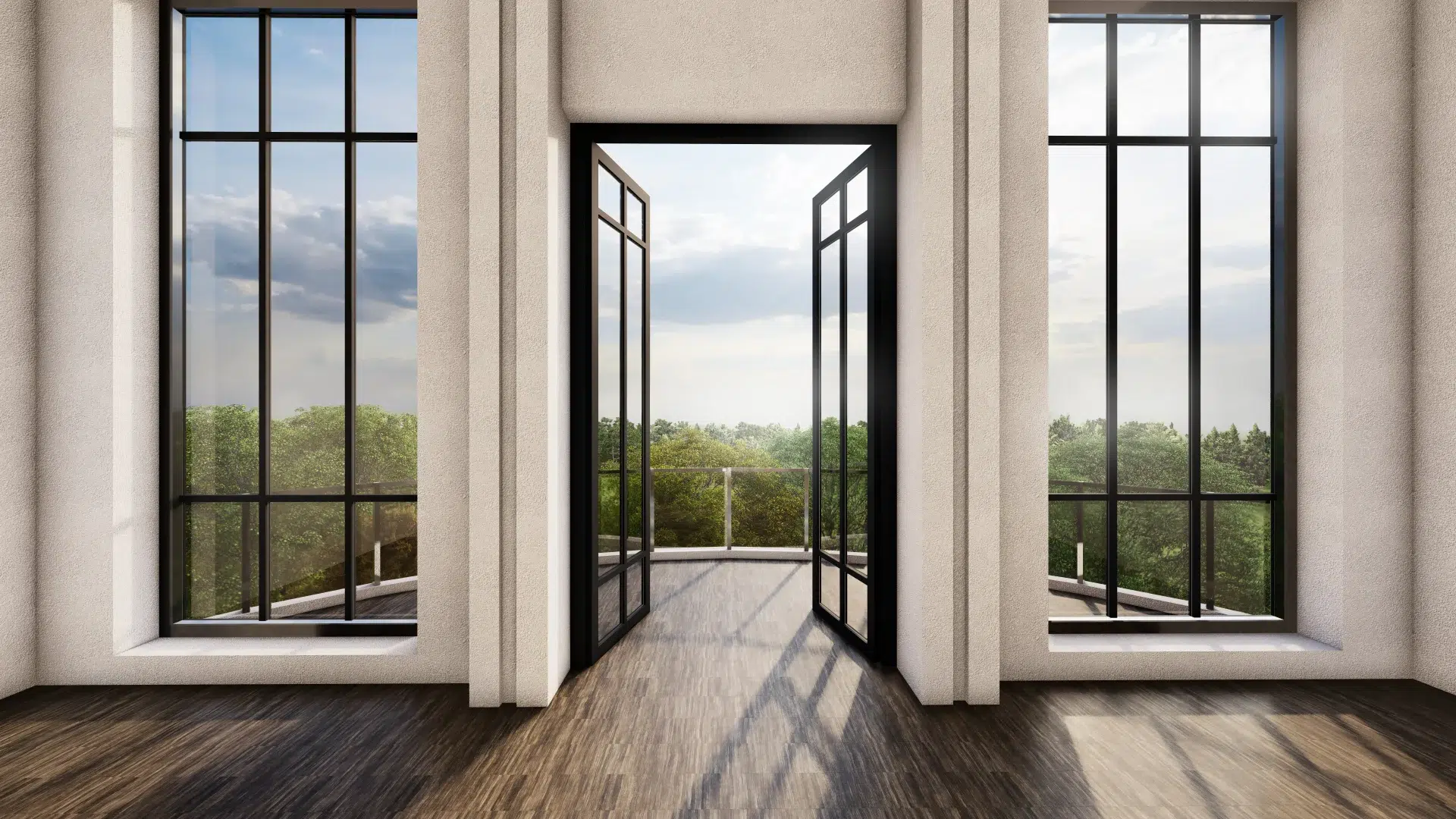

The VLX 100 Double Swing / French Door is what you spec when a single door feels too cramped and a sliding door doesn’t match the architecture. Both panels swing on hinges, meeting in the middle with a clean, uninterrupted sightline. There’s no center post blocking the opening when both doors are open, which matters if you’re moving furniture, hosting a party that spills onto the patio, or just want that wide-open Florida indoor-outdoor flow.

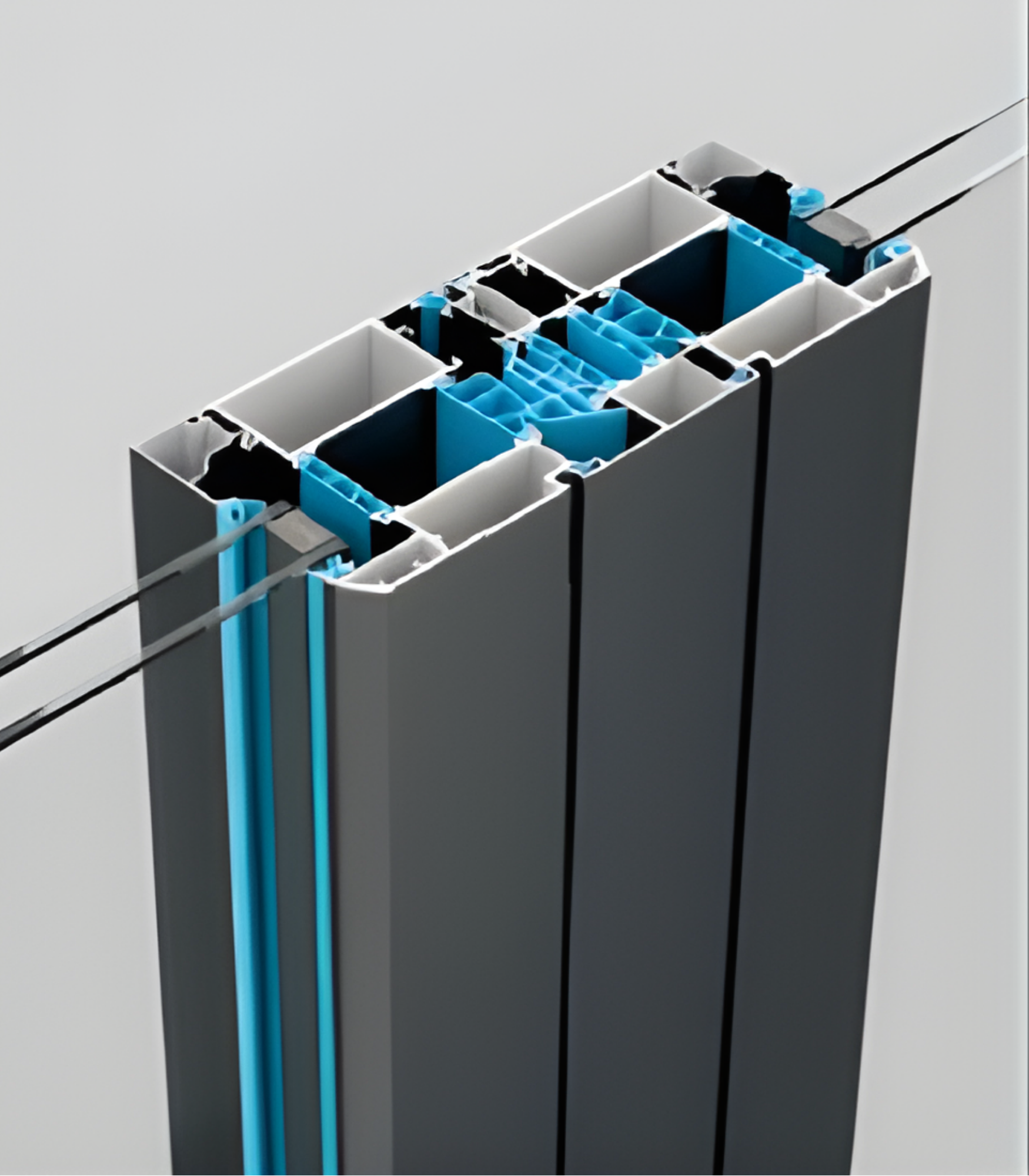

ViewLux engineered this series around a 2.56-inch profile width and a 0.098-inch wall thickness. That’s a beefier extrusion than you’ll find on entry-level aluminum doors, and it shows up in how the door feels when you operate it – no flex, no rattle, no sag. The paired panels are a favorite for rear elevations facing pools and lanais, front entries on Mediterranean and Spanish-style homes in Hyde Park, and anywhere a homeowner in Tampa wants a statement opening that still closes tight against humidity and afternoon thunderstorms.

The flush threshold deserves attention. Many French doors have a raised sill that catches toes and makes wheelchair or walker access difficult. The VLX 100 sits nearly level with the finished floor, which is safer for kids, older family members, and anyone carrying groceries. The multi-point lock hardware engages at the top, bottom, and center of the active panel, pulling both doors tight against the weatherstripping. It’s the kind of hardware that makes a satisfying thunk when you lock it, and it’s a real step up from a single deadbolt on a flimsy latch.

Technical Specifications

Here’s what the VLX 100 Double Swing / French Door brings to the table, in plain numbers.

• Frame wall thickness: 0.098 inches, extruded aluminum
• Profile width: 2.56 inches
• Maximum width per unit: 96 inches, paired configuration
• Configuration: Double swing, both panels operational, center meeting

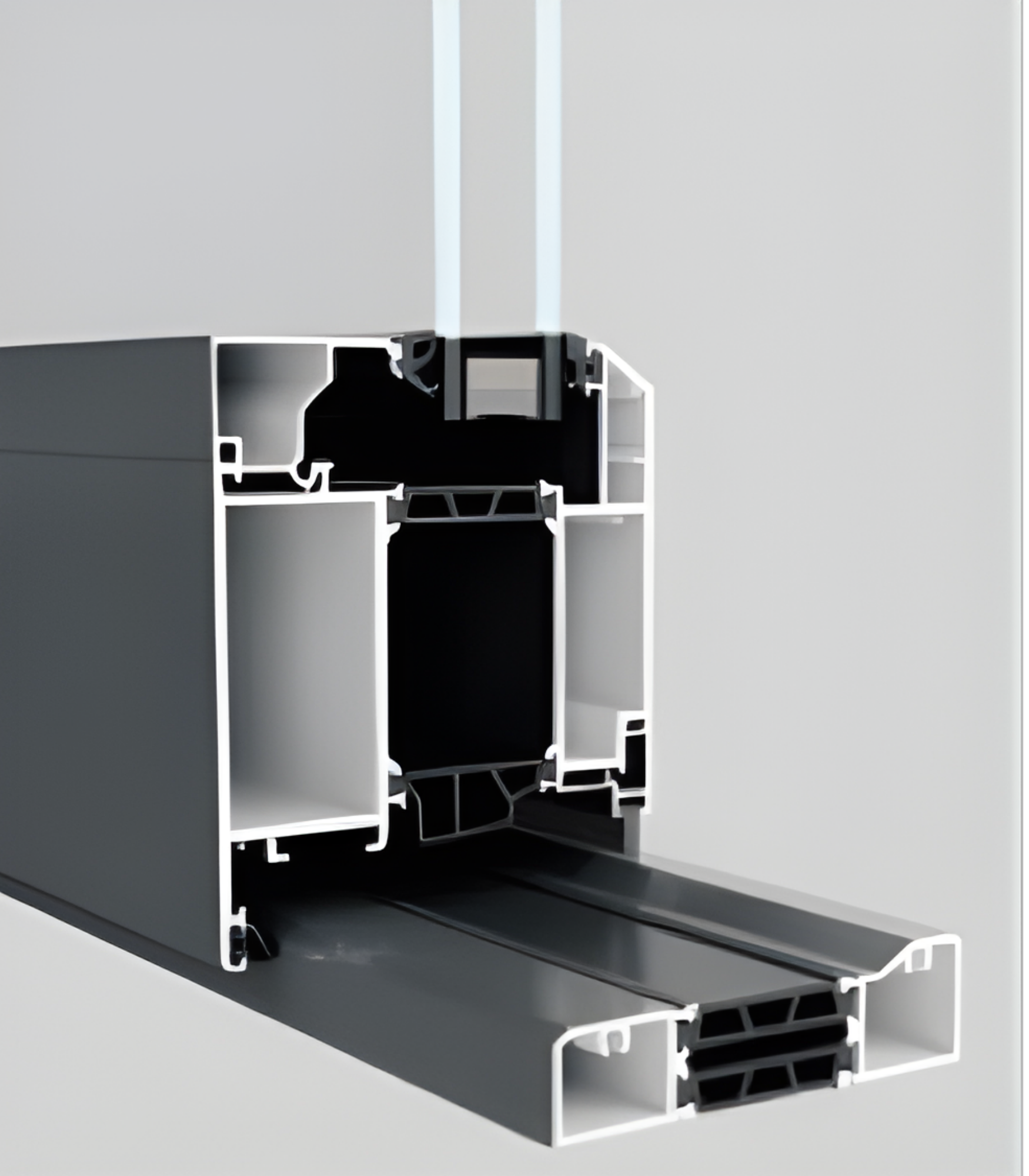

• Threshold: Flush, low-profile sill

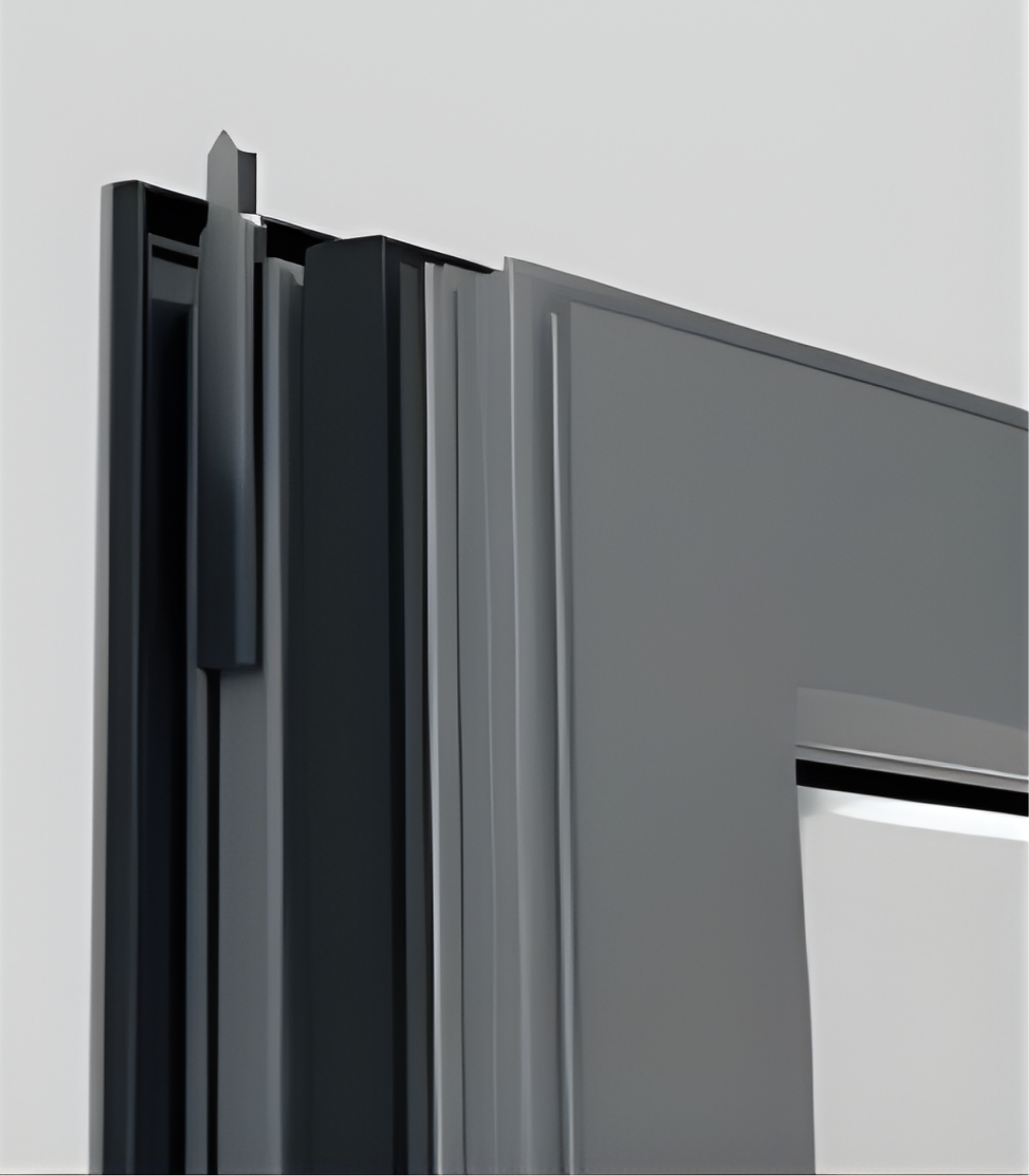

• Locking: Multi-point hardware, top, center, and bottom engagement
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen, or no screen
• Installation standard: AAMA 2400/2410 compliant, AAMA 812 perimeter sealing
• Thermal performance: Thermal break technology, NFRC-rated
• Impact option: Laminated glass available for wind-borne debris regions

Performance Features

Thermal Efficiency

Tampa heat doesn’t take a day off between May and October. The VLX 100 uses a thermal break inside the aluminum profile to slow heat transfer from the exterior skin to the interior skin. Pair that with Low-E glass and your air conditioning stops working as hard against the door. We’ve seen measurable temperature differences on the interior side of a thermally broken frame versus a non-broken aluminum frame in direct Tampa sun.

Acoustic Performance

If you live on a busy street in Tampa – think Kennedy Boulevard, Dale Mabry, or anywhere near the airport flight paths – the sound control of a well-sealed aluminum door matters. Laminated glass adds real noise reduction by sandwiching a polymer layer between two panes. Combined with the multi-point lock pulling the doors tight into compression, you’ll notice less road noise, fewer barking dogs, and quieter mornings.

Airtightness & Weather Seal

Florida humidity will find any gap you give it. The VLX 100’s weatherstripping runs continuously around both panels, and the multi-point hardware compresses everything evenly when locked. No weak spots at the top or bottom of the inactive panel, which is where cheaper French doors leak air. Airtightness here means lower energy bills and no musty smell near the door.

Waterproofing

Here’s what a lot of door sellers won’t tell you in Tampa: the door is only as waterproof as the installation. The VLX 100 itself has integrated drainage channels in the sill that direct water outward. But the perimeter seal is everything. Lightwell Windows Tampa installs every VLX 100 using AAMA 812 low-expansion foam on all perimeter joints, then applies the finish flashing and sealant per AAMA 2400/2410. We’ve pulled out “new” doors installed by other crews that were already rotting the rough opening after one rainy season because nobody properly sealed the jamb.

Wind Resistance

Tampa sits in a high wind-load region, and hurricane season is not theoretical. The VLX 100 is engineered to meet local wind-load requirements, and when you select laminated impact glass, the door is rated to resist wind-borne debris. That’s a serious consideration if your home is east of I-275 or anywhere within a few miles of Tampa Bay. Laminated glass also means the pane stays intact if something hits it, which protects your home from pressurization during storms. We can review your specific wind zone and building code requirements during the quote.

Security & Hardware

The multi-point lock on the VLX 100 is the feature you’ll brag about. Three locking points engage with one turn of the handle. It’s not just harder to kick in – it also keeps the door from warping over time because the panels are held straight when locked. The aluminum frame itself resists prying better than hollow vinyl or wood. For homeowners in Tampa who travel during the summer or leave for snowbird season, that’s genuine peace of mind.

Color & Glass Options

The VLX 100 comes in six finishes, and the right choice depends on your home’s architecture and sun exposure. Premium Black and Pure White are the two powder-coated options most Tampa homeowners choose. Black reads modern and sharp against a white stucco exterior; white keeps a coastal, airy feel and hides dust well. Bronze and Champagne are powder-coated as well, both warm metals that pair beautifully with traditional brick or Craftsman-style homes in Seminole Heights and Riverside Heights. Anodized Silver gives you that raw, industrial aluminum look that works on mid-century modern ranches. Teak Wood is a wood-grain powder coat that fools the eye from ten feet away, with none of the rot or termite risk of real wood in Florida humidity.

For glass, Clear is the budget baseline, but in Tampa you’ll want to seriously consider Low-E. It blocks solar heat gain while keeping visible light, and it works year-round. Frosted or Obscure glass is the call for a door that opens onto a side yard where you want privacy without curtains. Tempered is automatically included in safety glazing locations per code, and it’s standard on this door. Laminated is the upgrade that adds impact resistance and sound control, and it’s the one we recommend most often for Tampa homeowners who want the door to do real work during storm season.

Installation by Lightwell Windows Tampa in Tampa

Here’s a truth we don’t sugarcoat: a great door installed poorly is a bad door. Aluminum expands and contracts with Tampa’s daily temperature swings. If the rough opening isn’t square, if the panels aren’t set level and plumb, if the perimeter isn’t sealed correctly, you’ll see sticking doors, water intrusion, and fogged glass within a year or two. And the manufacturer’s warranty won’t cover it, because the failure was in the installation, not the product.

Lightwell Windows Tampa has installed the VLX 100 series across the Tampa Bay area, and we follow a process that eliminates those failures. It starts with a pre-install inspection of the rough opening. We check the framing, the substrate, and the existing waterproofing before the door ever comes off the truck. Then we set the frame level, plumb, and square, shimming where needed so there’s no twist in the extrusion. Every perimeter joint gets AAMA 812 low-expansion foam – the right product for this application, not whatever was cheapest at the big box store. We complete the installation per AAMA 2400/2410, which governs how doors and windows are installed in residential and light commercial buildings. After the door is in and sealed, we run a water test on the sill and perimeter, check the operation of both panels and the multi-point lock, and clean up the job site. You’d never know we were there except for the new door.

We also talk through Tampa-specific concerns during the quote: wind zone requirements, flood elevation considerations for homes near the bay or the Hillsborough River, and whether your HOA in a community like Westchase or New Tampa has any finish or style restrictions. We’d rather flag those things before you order than have you find out after the door arrives.

Frequently Asked Questions – VLX 100 Double Swing / French Door

Get a Quote – VLX 100 Double Swing / French Door in Tampa

The VLX 100 Double Swing / French Door is an investment in how your home opens, breathes, and holds up to Florida weather. We’d rather measure it right the first time than guess. Call Lightwell Windows Tampa at (850) 360-6785 to schedule a free on-site measurement and a line-item quote for your project in Tampa, FL. No pressure, no showroom games – just a straight answer on what this door costs installed in your home.

Written by the team at Lightwell Windows Tampa, serving Tampa, FL and the surrounding bay area with ViewLux door and window installations since 2019.
