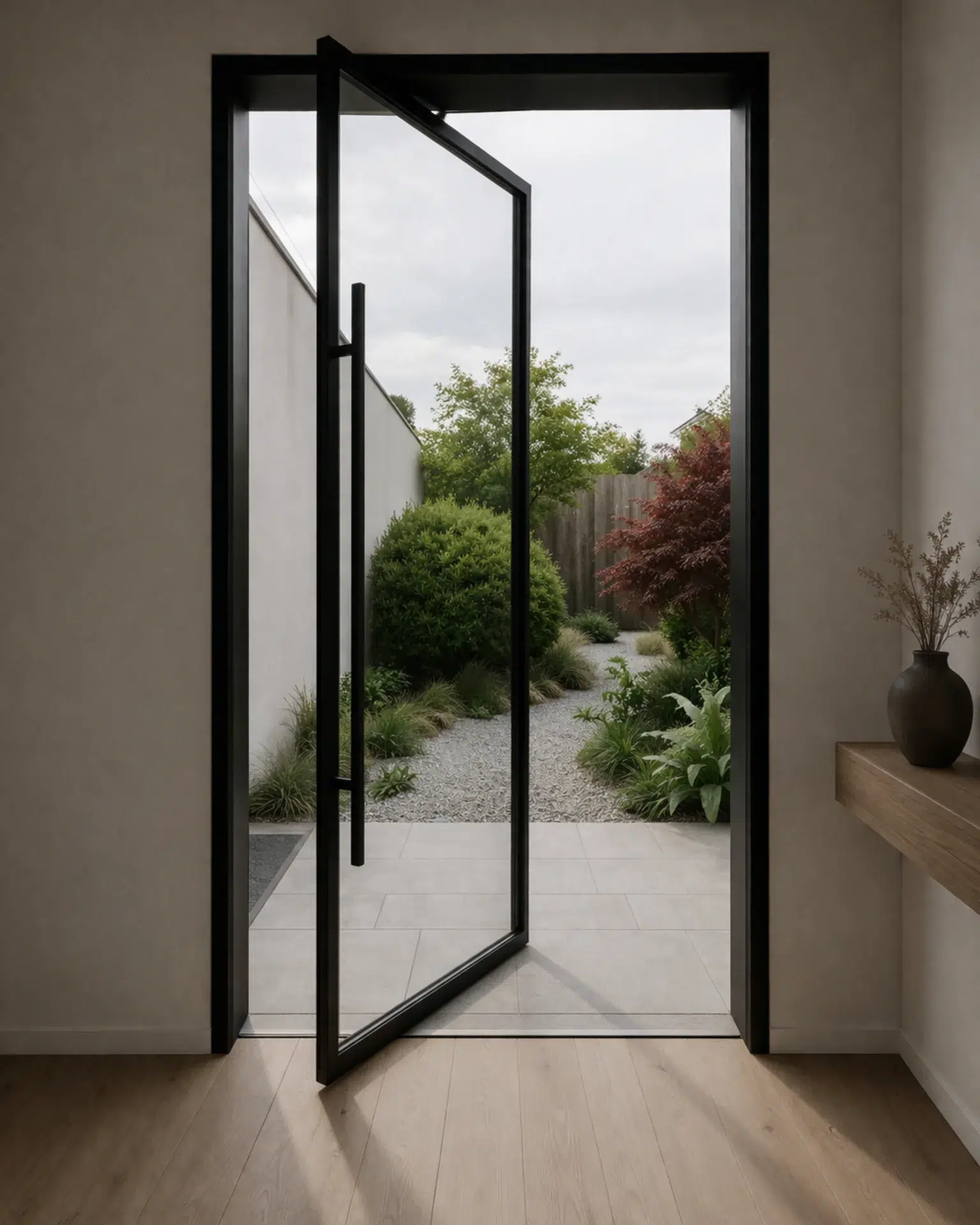

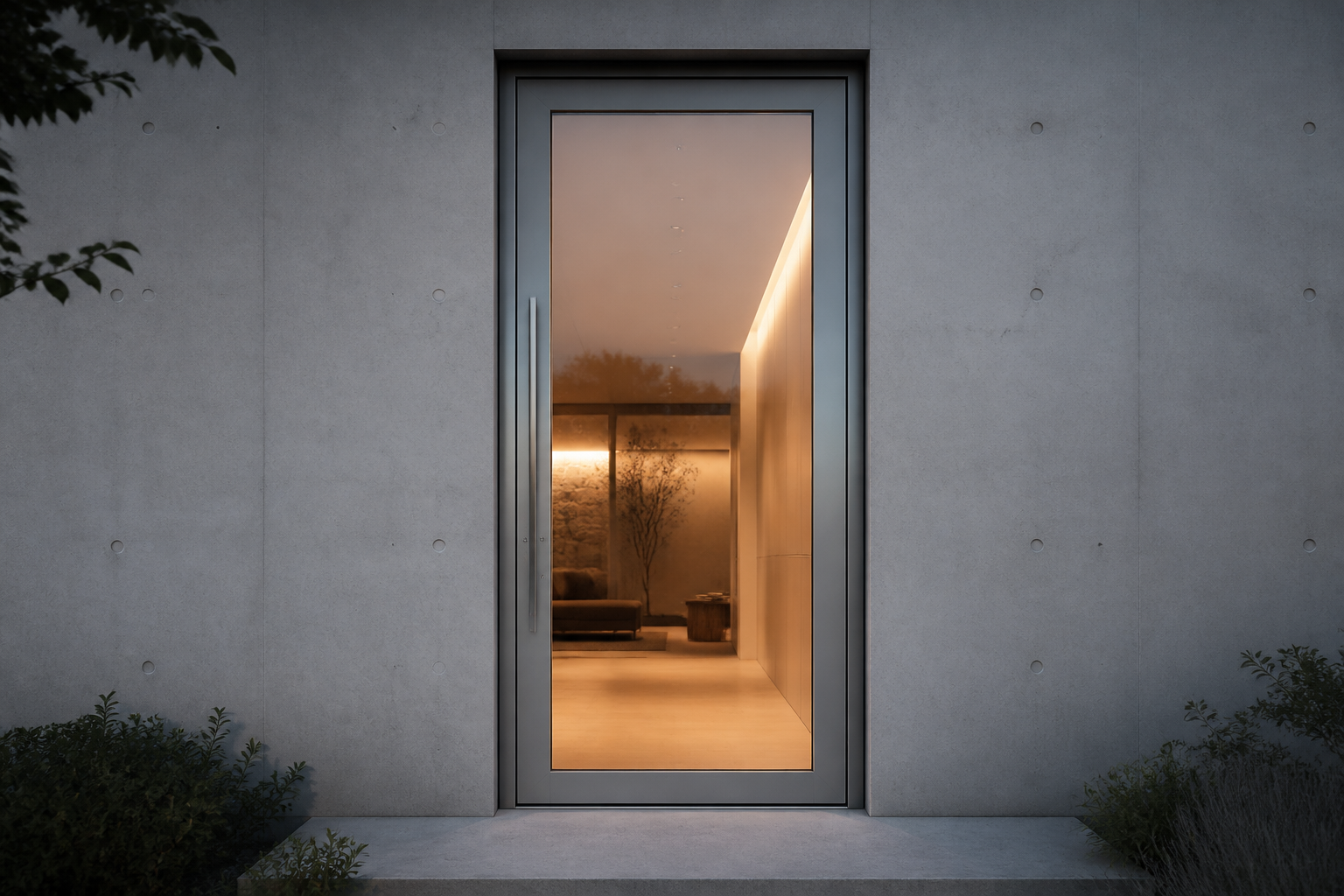

The VLX 100 Pivot Door is a heavy-duty aluminum entry system that rotates on a vertical center axis instead of swinging on side hinges. That single design choice changes everything about how a doorway feels: the leaf can span up to 60 inches wide and 120 inches tall, which means oversized glass, clean sightlines, and an entrance that reads as a deliberate architectural statement rather than a standard door. Lightwell Windows Tampa is an authorized ViewLux installation partner, and we handle this product from measurement to final walkthrough across Tampa, FL. If you’re considering one for your home, call (850) 360-6785 to talk through sizing and pricing.

Call (850) 360-6785

Product Overview – VLX 100 Pivot Door

Pivot doors have earned their reputation in modern architecture for a reason: they allow proportions that a conventional hinged door simply cannot support. The VLX 100 carries that idea into a production aluminum system, which means you get the visual impact of a custom pivot entry without the custom-millwork lead time or the maintenance burden of a solid wood slab. The frame profile measures 2.56 inches wide and the wall thickness is 0.098 inches, a combination that feels substantial when you operate the door and holds up in Florida’s humidity and sun exposure.

Where does this door belong? We’ve installed VLX 100 units in South Tampa mid-century remodels, Davis Islands waterfront homes, Westchase new builds, and Hyde Park historic renovations. It works wherever the entry is meant to be seen. The oversized glass panel floods the foyer with natural light, and the pivot action, centered on the leaf rather than the edge, makes a door this large feel balanced and surprisingly easy to operate. Buyers choose this series for curb presence, for daylighting, and because an aluminum pivot door sends a clear signal about the quality level of the home. In Tampa, FL, where outdoor living and indoor-outdoor flow drive so many design decisions, the VLX 100 is a natural fit.

Technical Specifications

• Profile width: 2.56 inches on the frame, giving the system a slim but confident sightline.
• Wall thickness: 0.098 inches of extruded aluminum, which contributes to the door’s rigidity and long-term flatness.
• Maximum panel size: Up to 60 inches wide by 120 inches tall, covering most oversized entry openings in Tampa residential construction.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, and Laminated. Tempered and laminated can be combined for impact resistance.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Operation: Vertical center-axis pivot hardware, sized to the panel weight.

These numbers matter because they determine what the door will and will not do. The 0.098-inch wall thickness is not entry-level material. The 60-by-120-inch maximum span means the VLX 100 handles openings that would require a pair of swinging doors in most other product lines. When we spec this door in Tampa, FL, we verify every one of these dimensions against the actual rough opening before ordering, because a pivot door tolerates less slop in the opening than a conventional hinged unit.

Performance Features

Thermal Efficiency – The VLX 100 frame includes a thermal break, which separates the interior and exterior aluminum faces to slow heat transfer. This is what allows the system to carry an NFRC-rated energy performance label. In Tampa, FL, that translates to a front door that does not radiate afternoon heat into the foyer, and it keeps the glass edge from sweating during summer humidity swings.

Acoustic Performance – Laminated glass is the single biggest upgrade you can make for sound control on this door, and it is a factory option. The combination of a thick aluminum frame, compression gaskets, and laminated glass gives the VLX 100 measurable sound reduction. Homes off Bayshore Boulevard or near the Selmon Expressway benefit the most from this configuration in Tampa.

Airtightness & Weather Seal – The door is engineered with continuous perimeter gaskets that compress when the leaf closes into the frame. This is not a door you will feel a draft through when properly set. Airtightness is also what protects the big glass panel from pressure differences that cause whistling in cheaper entry systems.

Waterproofing – On every VLX 100 install in Tampa, FL, we follow the AAMA 812 standard for low-expansion foam sealant on all perimeter joints. That means the rough opening is sealed before the frame is ever set, so wind-driven rain from a summer thunderstorm never finds a path behind the jamb. The sill and threshold are then flashed to direct water down and out.

Wind Resistance – Tampa sits in a high-wind design zone, and the VLX 100 is wind-load rated to meet local climate requirements. The pivot hardware and frame cross-section are engineered to resist both positive and negative pressure, which is what matters when a tropical system pushes against a 60-inch-wide glass panel. The impact-resistant laminated glass option takes this further for homes in stricter wind-borne debris regions.

Security & Hardware – Pivot doors present a unique locking challenge because the leaf meets the frame at a point, not along a continuous edge. The VLX 100 addresses this with multi-point locking hardware that engages at the top, bottom, and mid-height of the panel. Combined with tempered or laminated glass, the result is a door that looks elegant and does not compromise on security.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the current favorite for contemporary homes in Tampa, FL, especially on white or stucco exteriors where the contrast defines the entry. Pure White suits coastal and Mediterranean elevations and stays noticeably cooler to the touch in direct sun. Anodized Silver reads as industrial-modern and pairs beautifully with exposed concrete or steel accents. Bronze and Champagne lean traditional, and we see both regularly in South Tampa and Beach Park renovations where the door needs to bridge old and new. Teak Wood is a powder-coated finish that mimics warm timber without the maintenance, a smart choice for homes that want the pivot look without an actual wood slab warping in Florida humidity.

Glass selection depends on what the entry faces. Clear tempered glass maximizes visibility and light. Frosted and Obscure options give privacy for entries that open directly into a living area. Low-E coatings cut solar heat gain, which matters on west-facing doors in Tampa. Laminated glass adds impact resistance and sound damping, and it can be specified with any of the visual finishes above.

Installation by Lightwell Windows Tampa in Tampa

Installation makes or breaks a pivot door. A unit this large and this precisely engineered will not forgive a rough opening that is out of square, a frame set an eighth-inch off plumb, or a perimeter seal that is skipped. That is why Lightwell Windows Tampa installs every VLX 100 to the AAMA 2400/2410 installation standard, the industry benchmark for fenestration installation. It is also why we are an authorized ViewLux installation partner rather than a general contractor who happens to sell doors.

Our process starts with a pre-installation inspection of the rough opening. We check the subfloor for level, the king and jack studs for plumb, and the header for deflection. If the opening is not ready, we say so before any money is spent on the door itself. During installation, we set the frame level, plumb, and square, shimming as needed so the pivot axis sits perfectly vertical. A pivot door that leans will drift open or closed on its own, and no amount of hardware adjustment fixes a frame that was set wrong.

Perimeter sealing follows AAMA 812: low-expansion foam sealant at every joint between the frame and the rough opening. This is what keeps air and water out of the wall cavity, and it is the step most often skipped on cheap installs. After the leaf is hung and the hardware tuned, we run a final water test on the sill and threshold, clean up the site, and walk you through operation and maintenance. In Tampa, FL, where afternoon thunderstorms and high humidity are a daily reality for half the year, this level of care is not optional. Improper installation voids the manufacturer warranty on any pivot door, which is exactly why this product should not be treated as a DIY or handyman job.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in Tampa

The VLX 100 is a significant investment in your home’s entry, and pricing depends on size, glass, finish, and site conditions. Lightwell Windows Tampa can measure your opening, review your options, and deliver a written line-item quote with no surprises. Call (850) 360-6785 to start your project or schedule a free on-site measurement in Tampa, FL.

Written by the team at Lightwell Windows Tampa, serving Tampa, FL and the surrounding bay area with premium door and window installations.
