VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Tampa, FL | Lightwell Windows Tampa

The VLX 100 Swing / Entry Door is a modern aluminum entry door built around a minimalist frame and a multi-point locking system that secures at several points along the jamb when you lift the handle. It’s a single-entry door designed for homeowners in Tampa who want clean sightlines, strong thermal performance, and a front door that won’t warp in Florida humidity the way wood tends to. Lightwell Windows Tampa is an authorized ViewLux installation partner, which means we order directly from ViewLux and install to factory specification. If you’re researching this door for a Tampa home, call (850) 360-6785 and we’ll walk you through pricing, lead times, and what to expect during install.

Call (850) 360-6785

Product Overview – VLX 100 Swing / Entry Door

ViewLux designed the VLX 100 series around a simple idea: an entry door should be thin-framed and precise, not bulky. The profile measures 2.56 inches wide, which keeps the frame visually light while still carrying the structural load of a full-height door leaf. The wall thickness comes in at 0.098 inches, a heavier aluminum extrusion than what you’ll find on economy doors, and that weight translates to a door that opens and closes without flexing.

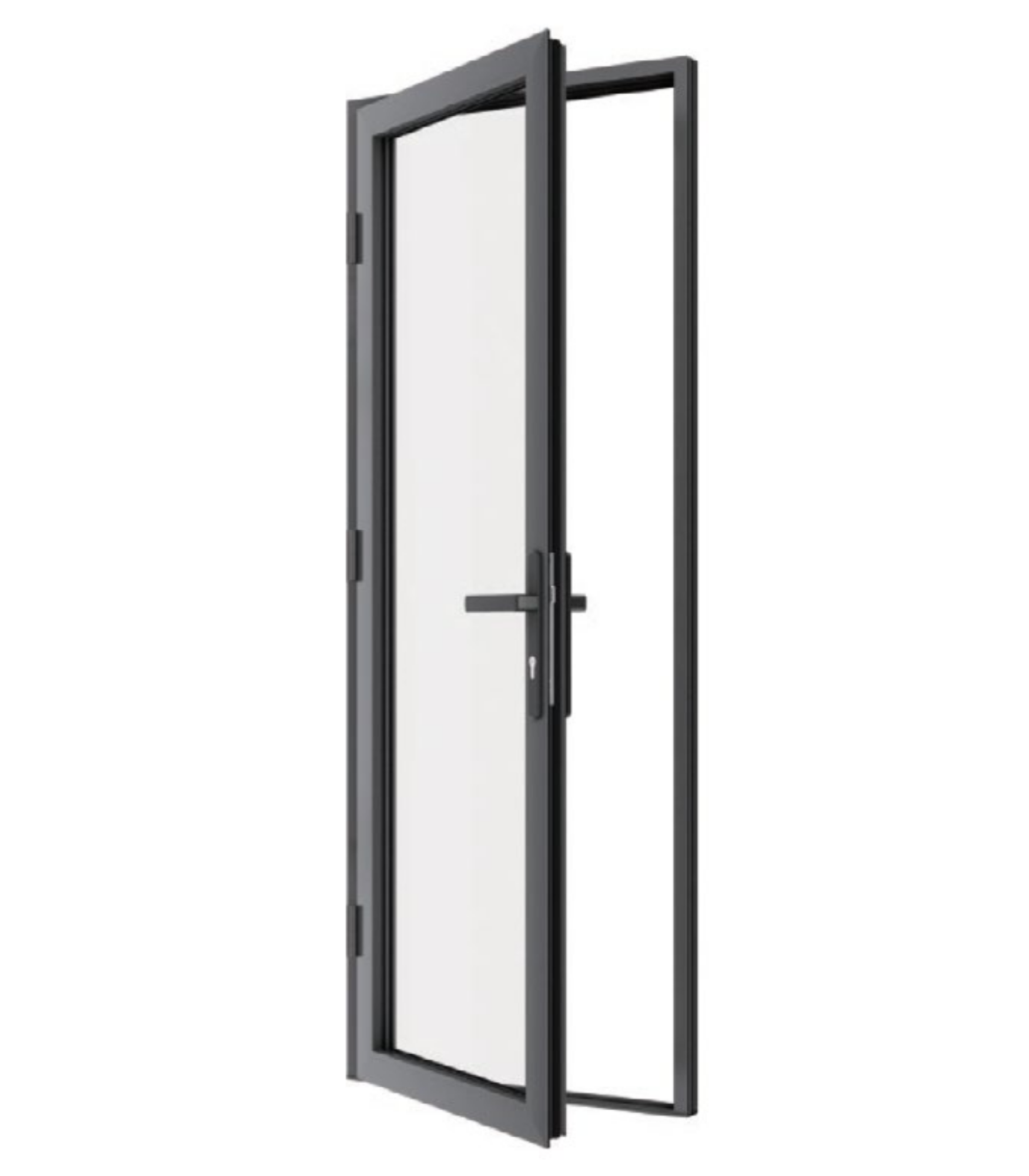

The swing configuration makes this a true entry door, hinged and operated like a conventional front door, but with the thermal and structural advantages of an aluminum system. The multi-point locking hardware engages at three or more points along the frame, pulling the leaf tight against the weatherstripping every time you close it. That’s a real detail, not a brochure bullet: in Tampa’s summer storms, a door that seals tightly at multiple points sheds water better and holds conditioned air longer than a single deadbolt door.

Architecturally, the VLX 100 fits modern homes in neighborhoods like Hyde Park, Davis Islands, and Westchase, where clean lines and narrow profiles matter. It also holds up on mid-century and contemporary remodels in Seminole Heights, where homeowners want an upgrade that feels intentional rather than boxy. The door is available up to 48 inches wide, which covers most front-entry rough openings in Tampa without custom engineering. Buyers choose this series over clad-wood or steel doors because aluminum does not absorb moisture, does not rust, and does not expand and contract the way wood does in Florida’s wet-dry cycles. Pair that with thermal break technology and you have a door that actually suits the climate, not one that fights it.

Technical Specifications

Here are the hard numbers and available options for the VLX 100 Swing / Entry Door, in plain terms.

• Frame profile width: 2.56 inches, narrow enough for a modern look but sized for strength
• Aluminum wall thickness: 0.098 inches, heavier than standard extrusions for rigidity
• Maximum leaf span: up to 48 inches wide, covering most standard single entry openings
• Door type: single swing / entry configuration, hinged operation
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated (impact-rated available)
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen or None
• Performance certifications: NFRC-rated thermal performance, AAMA 2400/2410 installation standard compliance, AAMA 812 low-expansion foam sealant at perimeter joints, wind-load rated for Tampa-area requirements

Glass choice affects energy performance, privacy, and safety. Low-E glass cuts solar heat gain, which matters on west-facing entries in South Tampa. Laminated glass holds together if impacted, a serious consideration for hurricane season. Your Lightwell Windows Tampa consultant can help you pick the right combination for your exposure and budget.

Performance Features

Thermal Efficiency – The VLX 100 uses a thermal break inside the aluminum frame, separating the interior and exterior metal surfaces. This prevents heat from conducting through the frame into your air-conditioned entryway. NFRC-rated performance means you can compare its U-factor and solar heat gain coefficient against any other door on the market, apples to apples. In Tampa, where cooling costs run high from May through October, this is not a minor detail.

Acoustic Performance – Laminated glass combined with the door’s tight perimeter seal reduces exterior noise. For homes on busier streets like Armenia Avenue, Kennedy Boulevard, or near the Selmon Expressway, that added sound isolation is noticeable. The multi-point locking system pulls the leaf firmly into the weatherstripping, eliminating the small gaps that let sound leak through a conventional door.

Airtightness & Weather Seal – Every VLX 100 is installed by Lightwell Windows Tampa with AAMA 812 low-expansion foam at all perimeter joints. That foam fills the gap between the door frame and the rough opening, stopping air movement that standard caulk simply can’t. The result is an entryway that doesn’t leak conditioned air or let Tampa’s humid outdoor air seep into your home.

Waterproofing – Water intrusion is the number one long-term threat to any door opening in Florida. The VLX 100’s frame design channels water away from the interior, and our AAMA 2400/2410-compliant installation includes proper sill flashing and sealant detailing. We water-test the finished install before we call the job done.

Wind Resistance – The door is wind-load rated for local code requirements, which in Tampa means it’s engineered for high-velocity wind events. The 0.098-inch wall thickness and multi-point locking hardware give the leaf structural integrity under negative and positive pressure. Choosing the laminated glass option adds storm-impact resistance for homes in evacuation zones or wind-borne debris regions.

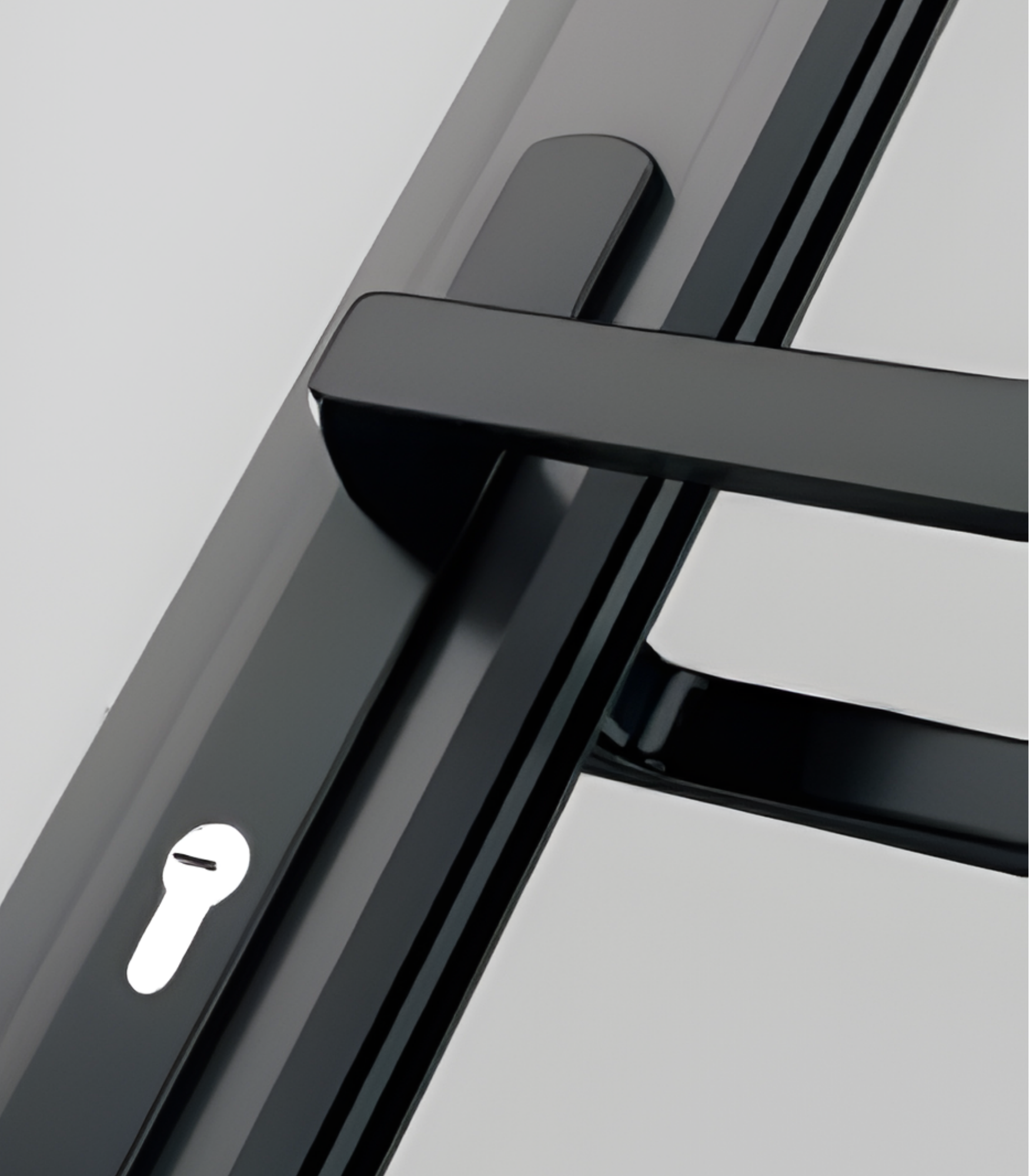

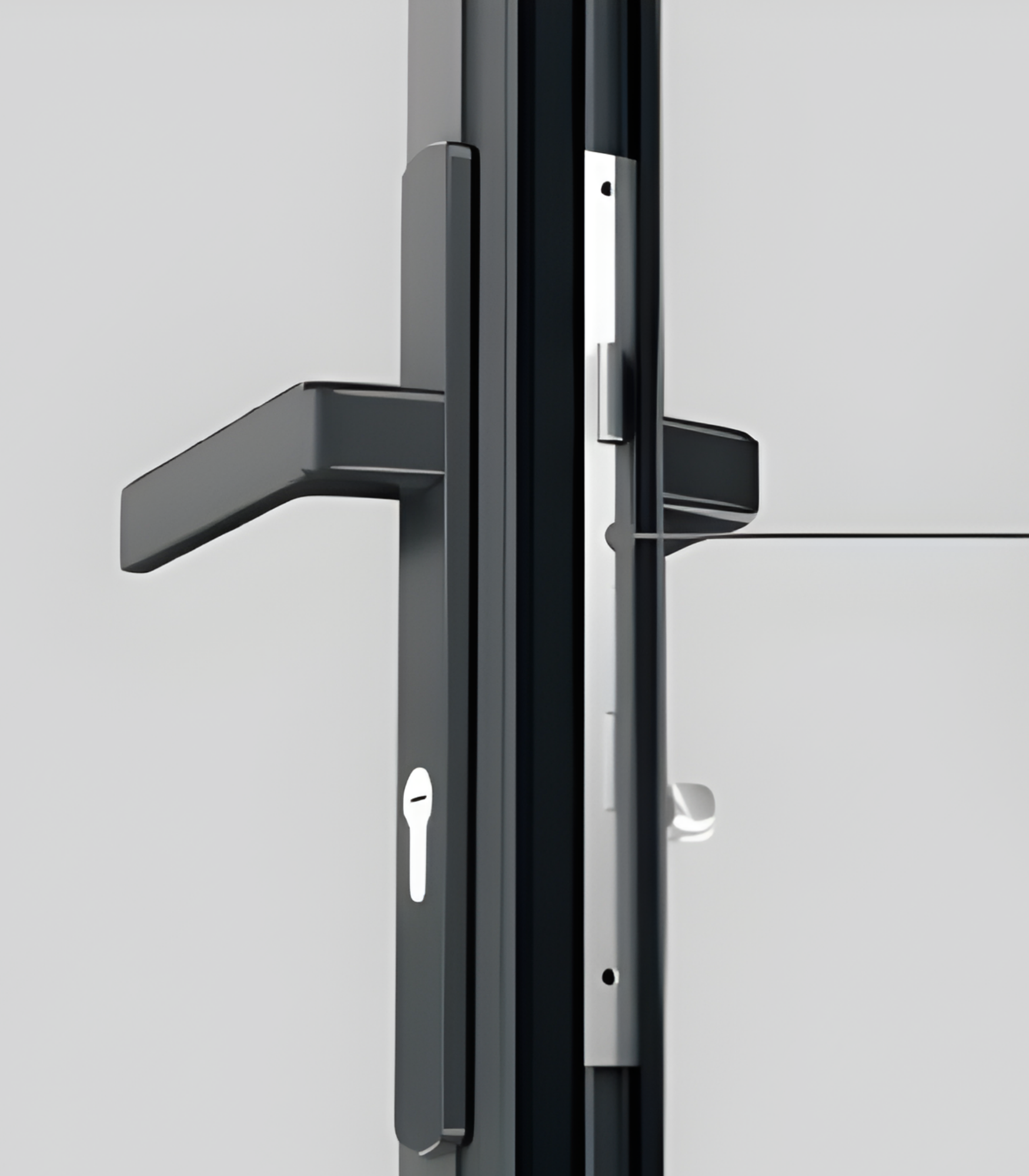

Security & Hardware – Multi-point locking engages hardened bolts at the top, middle, and bottom of the door with a single handle movement. Compare that to a standard deadbolt securing one point. The aluminum frame won’t split or crack under forced entry the way a wood jamb will. For Tampa homeowners, that’s meaningful peace of mind whether you’re home or not.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Color & Glass Options

The VLX 100 comes in six finishes, and the right choice depends on your home’s architecture and your street presence preferences. Premium Black and Pure White are the two strongest sellers in Tampa. Black reads contemporary and anchors a modern or transitional exterior. Pure White brightens an entry and works well on coastal, cottage, or Florida-bungalow styles in areas like Palma Ceia and Bayshore Beautiful. Anodized Silver leans industrial and minimal, a good match for true modern builds. Bronze offers warmth with a darker tone, pairing well with brick or earth-toned stucco. Champagne is a softer metallic that bridges modern and traditional. Teak Wood gives you the look of wood grain without the humidity vulnerability of actual wood, a practical choice for historic districts where an HOA or architectural review board wants a wood appearance.

Glass selection matters just as much as finish. Clear glass maximizes visibility but offers no privacy. Frosted and Obscure glass both diffuse light while blocking a direct view, with Obscure offering stronger privacy for entry doors that face the street. Low-E glass is the energy workhorse, reflecting solar heat while keeping natural light. Tempered glass provides safety glazing that crumbles into small pieces rather than dangerous shards if broken. Laminated glass is the impact-resistant option we recommend for Tampa homes in hurricane-prone zones, and it also improves acoustic isolation. Every combination is available through Lightwell Windows Tampa, and we’ll help you weigh looks, privacy, energy performance, and impact protection for your specific entry exposure.

Installation by Lightwell Windows Tampa in Tampa

The best door on paper fails if the installation is sloppy, and that’s where Lightwell Windows Tampa earns our reputation. We install every VLX 100 to the AAMA 2400/2410 standard, which governs the installation of windows and doors in commercial and high-performance residential settings. That standard is the benchmark for a reason: it requires specific flashing, sealing, and anchoring practices that prevent water and air intrusion over the life of the door.

Our process starts with a pre-install inspection of the rough opening. We check the framing for squareness, levelness, and any signs of existing water damage that needs correction before the door goes in. From there we set the door level, plumb, and square, shimming as needed so the leaf hangs correctly and the multi-point locks engage smoothly. The perimeter gets AAMA 812 low-expansion foam at every joint, which seals the gap between frame and framing without distorting the aluminum. Then we flash, seal, and detail the sill exactly as the manufacturer specifies.

Tampa’s climate is hard on entry doors. Intense sun, daily humidity for half the year, and hurricane-season rain all test the building envelope constantly. A door that’s slightly out of square will bind on the hinges and wear out the weatherstripping early. A poorly flashed sill will wick water into the subfloor where you can’t see it until the damage is serious. None of this is covered by the manufacturer warranty when installation was the cause, which is another reason we insist on factory-authorized installation with documented compliance. You get a door that opens and closes perfectly from day one, a water-tight seal we verify before we leave, and a clean job site when the work is done.

Get a Quote – VLX 100 Swing / Entry Door in Tampa

Ready to see the VLX 100 Swing / Entry Door on your Tampa home? Call Lightwell Windows Tampa at (850) 360-6785 to schedule a free on-site measurement. We’ll confirm sizing, review glass and finish options, and give you a written line-item quote with no change orders later. Your project starts with one phone call.

Written by the team at Lightwell Windows Tampa, serving Tampa, FL and surrounding neighborhoods since day one.
